扁平式/纽扣式振动马达完整列表

Photo of Jinlong Machinery coin vibrator motor

扁平振动马达的制作采用了四种不同的技术,每种技术都有其独特的优势。在这里,我们将简单的介绍一下,在其各自的页面有对其更加详细的描述。下面列表的“技术类型”一栏中列出了这4种技术,它们是“有刷”(BRUSH),“无刷”(BLDC)也被称为无刷直流,LRA线性马达(线性谐振致动器),和双磁有刷马达(DOUBLE-MAGNET)。扁平振动马达可用于智能手表、健身跟踪设备与其他可穿戴设备,但必须仔细考虑选择正确的技术类型和其他技术参数,如振动(G)值、振动频率和上升/下降时间。下面所列出的“有刷”(BRUSH)马达,通常多用于较低成本的消费级产品上简单的用户警报。需要较低到中等的产品寿命。绝大多数产品都是使用这种振动马达。然而,如果您的应用需要一个非常长的马达寿命和高MTBF要求,可以考虑使用我们的无刷(BLDC)振动马达。这些无刷马达比有刷马达价格要高。当需要快速的上升/下降时间,以产生清晰的触觉反馈时,可以使用线性LRA。双磁有刷马达(DOUBLE-MAGNET)的特点是高振动(G)值和良好的与上升/下降时间。响应时间可与LRA相当,而不需要驱动IC。我们可以为扁平振动马达添加各种连接器、弹簧接片、柔性线路板(FPC)或接触焊盘,请参考页面底部的结构类型图。我们也可以为您的应用设计特制的柔性线路板(FPC)。如果您的应用需要,我们也可以添加不同厚度的泡沫垫(Foam Pad)和/或双面胶带(Double Stick Tape)。可根据要求提供3D CAD文件。

点击这里查看图片,参考扁平振动马达是如何安装在产品上的。

滚动表格查看所有马达


产品型号

Download Icon
旧型号 图片

coin motor logo
技术
类型
结构
类型
马达尺寸 (mm) 电压 电流 (mA) 响应时间(ms)
- 50%能量
- 最大值
工作
频率
(hz)
额定
速度
(rpm)
振动
(G)值
直径 厚度 额定 工作 额定
MAX
典型值
*Avg.
上升
时间
下降
时间
VC0625B001L C0625B001L VC0625B001L coin vibration motor preview image BRUSH 1 6.0 2.5 2.5 Vdc 2.0~3.5 Vdc 100 42 90 50 N/A 10000 0.40
VC0720B001F C0720B001F VC0720B001F coin vibration motor preview image BRUSH 2 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 85 53 90 50 N/A 10000 0.15
VC0720B003D C0720B003D VC0720B003D coin vibration motor preview image BRUSH 4 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 80 49 90 50 N/A 10000 0.15
VC0720B015F C0720B015F VC0720B015F coin vibration motor preview image BRUSH 1 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 85 53 90 50 N/A 8000 0.15
VC0720B088L
blinking new image
C0720B088L VC0720B088L coin vibration motor preview image BRUSH 3 7.0 2.1 3.0 Vdc 2.5~3.5 Vdc 55 48 90 50 N/A 10000 0.15
VC0820B006F C0820B006F VC0820B006F coin vibration motor preview image BRUSH 1 8.0 2.1 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 10000 0.45
VC0820B029L
blinking new image

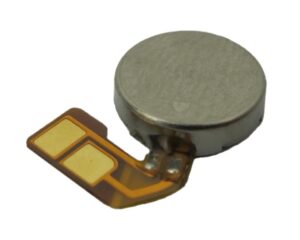

VC0820B029L coin vibration motor preview image BRUSH 3 8.0 2.1 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 10000 0.45
VC0820K001L C0820K001L VC0820K001L coin vibration motor preview image BRUSH 7 8.0 2.1 3.0 Vdc 2.3~3.5 Vdc 85 62 90 50 N/A 10000 0.45
VC0824K001L C0824K001L VC0824K001L coin vibration motor preview image BRUSH 7 8.05 2.4 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 10000 0.60
VC0824K002L C0824K002L VC0824K002L coin vibration motor preview image BRUSH 7 8.0 2.4 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 10000 0.70

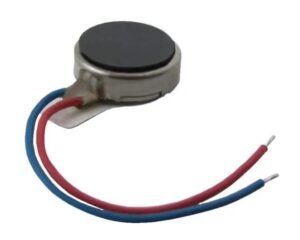

VC0825B002F C0825B002F VC0825B002F coin vibration motor preview image BRUSH 1 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.70
VC0825B029L VC0825B029L coin vibration motor preview image BRUSH 3 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 85 63 90 50 N/A 10000 0.70
VC0827B005F C0827B005F VC0827B005F coin vibration motor preview image BRUSH 1 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.70

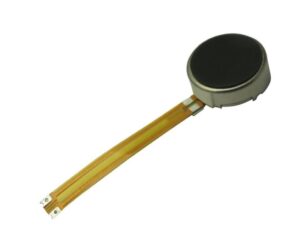

VC0827B019F C0827B019F VC0827B019F coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 100 69 90 50 N/A 12000 0.75

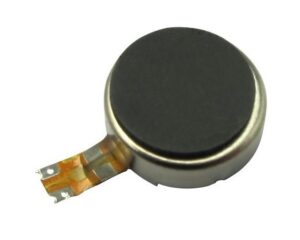

VC0827B020F C0827B020F VC0827B020F coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.75

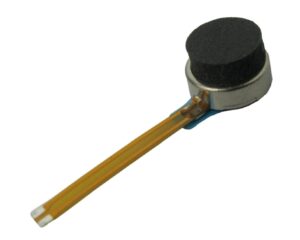

VC0827B029L VC0827B029L coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 13500 0.70

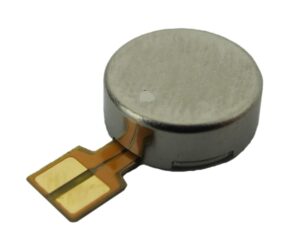

VC0827B307L VC0827B307L coin vibration motor image coming soon BRUSH 3 8.0 2.7 3.0 Vdc 2.3~3.5 Vdc 85 61 90 50 N/A 10000 1.10

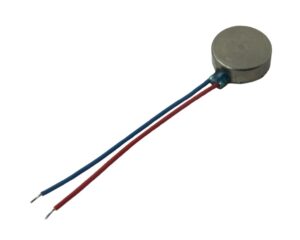

VC0830B001L C0830B001L VC0830B001L coin vibration motor preview image BRUSH 1 8.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 12000 1.00

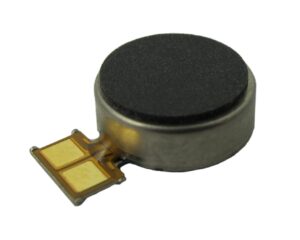

VC0830B009L C0830B009L VC0830B009L coin vibration motor preview image BRUSH 3 8.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 50 90 50 N/A 10000 1.10
VC0830B029L VC0830B029L coin vibration motor preview image BRUSH 3 8.0 3.0 3.0 Vdc 2.7~3.3 Vdc 90 63 90 50 N/A 13000 1.40

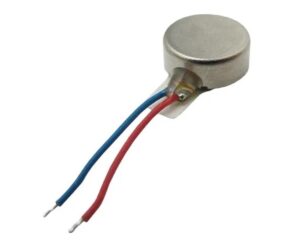

VC0834B011F C0834B011F VC0834B011F coin vibration motor preview image BRUSH 1 8.0 3.4 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.00
VC1018B001L
blinking new image

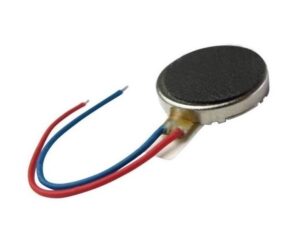

C1018B001L VC1018B001L coin vibration motor preview image BRUSH 1 10.0 1.8 3.0 Vdc 2.5~3.5 Vdc 85 60 90 50 N/A 10000 0.60
VC1020B001D C1020B001D VC1020B001D coin vibration motor preview image BRUSH 4 10.0 2.05 3.0 Vdc 2.7~3.3 Vdc 90 61 90 50 N/A 9000 1.10

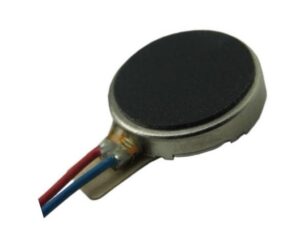

VC1020B111F C1020B111F VC1020B111F coin vibration motor preview image BRUSH 1 10.0 2.1 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.00

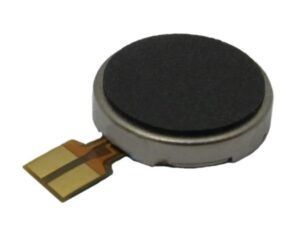

VC1020B569L C1020B569L VC1020B569L coin vibration motor preview image BRUSH 3 10.0 2.1 3.0 Vdc 2.5~3.5 Vdc 85 62 90 50 N/A 13500 1.00
VC1026B002F C1026B002F VC1026B002F coin vibration motor preview image BRUSH 1 10.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 55 90 50 N/A 9000 0.80

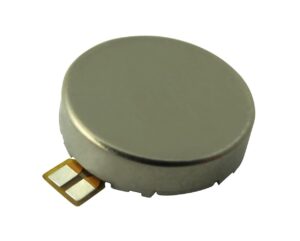

VC1027B001D C1027B001D VC1027B001D coin vibration motor preview image BRUSH 4 10.0 2.7 3.0 Vdc 2.7~3.3 Vdc 90 50 90 50 N/A 9000 1.10
VC1027B077L
blinking new image
VC1027B077L coin vibration motor preview image BRUSH 2 10.0 2.7 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 13500 1.10

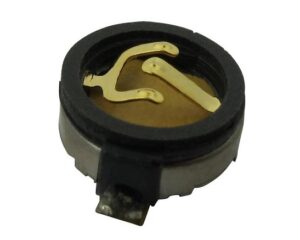

VC1027B200N C1027B200N VC1027B200N coin vibration motor preview image BRUSH 6 10.0 2.7 3.0 Vdc 2.4~3.6 Vdc 80 55 90 50 N/A 9000 1.10

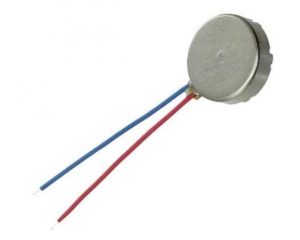

VC1030A002F
blinking new image
VC1030A002F coin vibration motor preview image BRUSH 1 10.0 3.0 1.3 Vdc 1.0~1.7 Vdc 100 69 90 50 N/A 9000 0.55
VC1030B028F C1030B028F VC1030B028F coin vibration motor preview image BRUSH 1 10.0 3.0 3.0 Vdc 2.7~3.3 Vdc 85 64 90 50 N/A 13500 1.30
VC1030B295L C1030B295L VC1030B295L coin vibration motor preview image BRUSH 1 10.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 10000 1.00

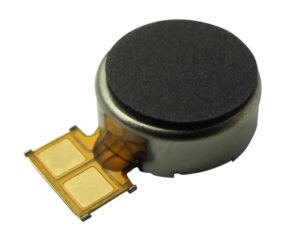

VC1030B400U VC1030B400U coin vibration motor preview image BRUSH 3 10.0 3.0 3.0 Vdc 2.7~3.3 Vdc 80 67 90 50 N/A 12000 1.00
VC1030B823L C1030B823L VC1030B823L coin vibration motor preview image BRUSH 3 10.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 62 90 50 N/A 13500 0.90
VC1034B018F C1034B018F VC1034B018F coin vibration motor preview image BRUSH 1 10.0 3.4 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.50
VC1034B400D C1034B400D VC1034B400D coin vibration motor preview image BRUSH 3 10.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 48 90 50 N/A 12000 1.6

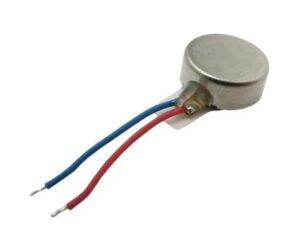

VC1034H025L C1034H025L VC1034H025L coin vibration motor preview image BRUSH 1 10.0 3.4 1.5 Vdc 1.2~1.8 Vdc 40 36 90 50 N/A 9000 0.50

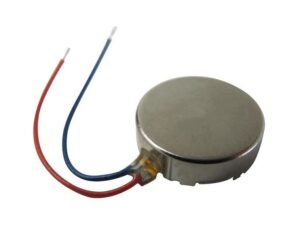

VC1234B016F C1234B016F VC1234B016F coin vibration motor preview image BRUSH 1 12.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 48 90 50 N/A 9000 2.00

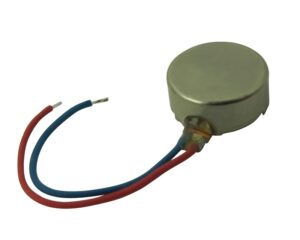

VCDM0834B004L CDM0834B004L VCDM0834B004L coin vibration motor preview image DOUBLE-MAGNET 1 8.0 3.4 3.0 Vdc 2.5~3.5 Vdc 75 48 35 50 N/A 10000 1.40

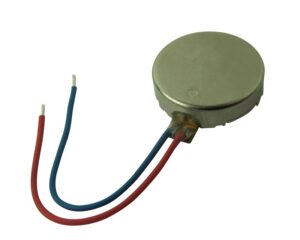

VCDM1027B003L
blinking new image
CDM1027B003L VCDM1027B003L coin vibration motor preview image DOUBLE-MAGNET 1 10.0 2.7 3.0 Vdc 2.5~3.5 Vdc 75 52 35 50 N/A 15000 1.60
VCLP0820B004L CLP0820B004L VCLP0820B004L coin vibration motor preview image BRUSH 1 8.0 2.1 3.0 Vdc 2.7~4.0 Vdc  35 30 90 50 N/A 9000 0.35

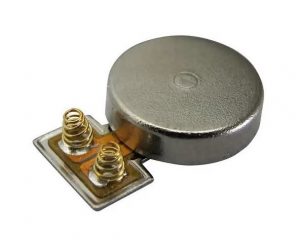

VCLP0820K001L
blinking new image
VCLP0820K001L coin vibration motor preview image BRUSH 7 8.0 2.1 3.0 Vdc 2.7~4.0 Vdc  35 31 90 50 N/A 9000 0.35
VCLP1020B002L
blinking new image

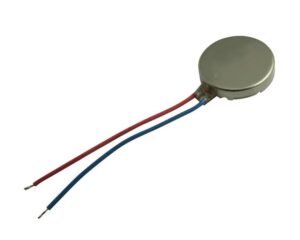

CLP1020B002L VCLP1020B002L coin vibration motor preview image BRUSH 1 10.0 2.1 3.0 Vdc 2.5~3.5 Vdc  30 27 90 50 N/A 8000 0.75
VG0640001D
blinking new image

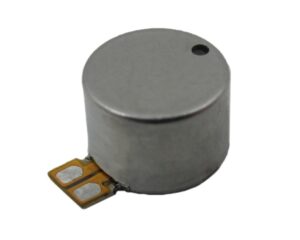

G0640001D VG0640001D coin vibration motor preview image LRA 4 6.0 4.05 1.8 Vac 0.5~1.8 Vac 75 58 15 70 210 - 0.90

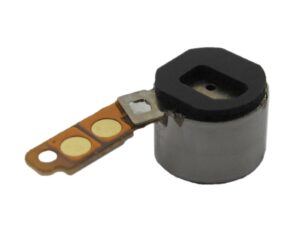

VG0640002D VG0640002D coin vibration motor preview image LRA 3 6.0 4.05 1.8 Vac 0.5~1.8 Vac 75 58 15 70 210 - 0.90
VG0825001D G0825001D VG0825001D coin vibration motor preview image LRA 1 8.0 2.55 1.2 Vac 0.1~1.2 Vac 60 48 50 50 240 - 1.05
VG0825002D
blinking new image
VG0825002D coin vibration motor preview image LRA 7 8.0 2.65 1.2 Vac 0.1~1.25 Vac 60 48 50 50 240 - 1.05

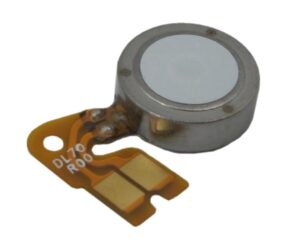

VG0825003D VG0825003D coin vibration motor preview image LRA 2 8.0 2.55 1.2 Vac 0.1~1.25 Vac 60 48 50 50 240 - 1.05
VG0832008 G0832008 VG0832008 coin vibration motor preview image LRA 4 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80

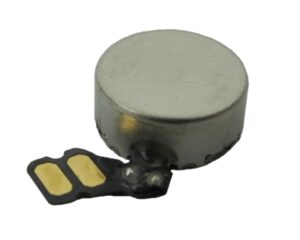

VG0832009L VG0832009L coin vibration motor preview image LRA 2 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80

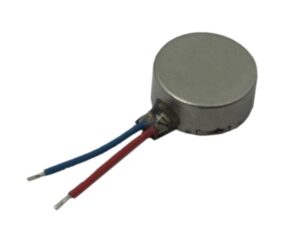

VG0832012 G0832012 VG0832012 coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832013D G0832013D VG0832013D coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80

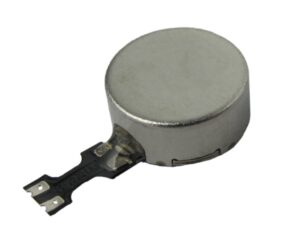

VG0832014L
blinking new image
G0832014L VG0832014L coin vibration motor preview image LRA 2 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80

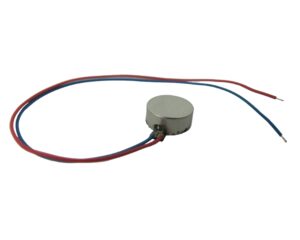

VG0832022D G0832022D VG0832022D coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80

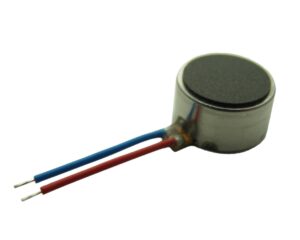

VG0840001D
blinking new image
G0840001D VG0840001D coin vibration motor preview image LRA 3 8.0 4.05 2.0 Vac 0.1~2.0 Vac 90 68 12 55 170 - 1.80

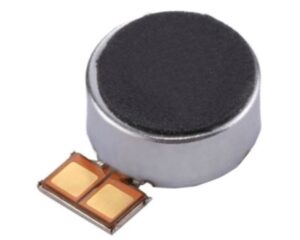

VG1040003D G1040003D VG1040003D coin vibration motor preview image LRA 3 10.0 4.0 2.5 Vac 0.1~2.5 Vac 170 145 10 50 170 - 2.00

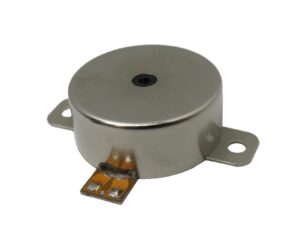

VG2080001D VG2080001D coin vibration motor image coming soon LRA 4 20.0 8.0 1.8 Vac 1.0~2.0 Vac 200 170 20 60 130 - 1.60
VG2230001H VG2230001H coin vibration motor image coming soon LRA 22.0 30.0 2.5 Vac 0.1~3.0 Vac 60 48 60 100 70 - > 3.5
VW0525AB001D W0525AB001D VW0525AB001D coin vibration motor preview image BLDC 1 5.0 2.5 3.0 Vdc 2.7~3.3 Vdc 80 77 70 90 N/A 14000 0.25
VW0625AB001G W0625AB001G VW0625AB001G coin vibration motor preview image BLDC 1 6.0 2.5 3.0 Vdc 2.7~3.3 Vdc 90 67 70 90 N/A 15000 0.55
VW0625SS001D W0625SS001D VW0625SS001D coin vibration motor preview image BLDC 5 6.0 2.5 3.0 Vdc 2.7~3.3 Vdc 90 67 70 90 N/A 15000 0.55
VW0625SS002D
blinking new image
VW0625SS002D coin vibration motor preview image BLDC 5 6.0 2.5 3.0 Vdc 2.7~3.7 Vdc 80 67 70 90 N/A 15000 0.55
VW0825AB001G W0825AB001G VW0825AB001G coin vibration motor preview image BLDC 1 8.0 2.5 3.0 Vdc 2.5~3.6 Vdc 90 80 70 90 N/A 15000 1.00
VW0825AB002G
blinking new image
VW0825AB002G coin vibration motor preview image BLDC 3 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 80 67 70 90 N/A 13500 1.00
VW0934AB001G W0934AB001G VW0934AB001G coin vibration motor preview image BLDC 1 9.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 50 70 90 N/A 11500 1.40
VW0934AB007G W0934AB007G VW0934AB007G coin vibration motor preview image BLDC 3 9.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 56 70 90 N/A 11500 1.40
产品型号 旧型号 图片 技术类型 结构类型 直径 (mm) 厚度 (mm) 额定 (V) 工作 (V) 额定 MAX (mA) 典型值* (mA) 上升时间 (ms) 下降时间 (ms) 工作频率 (hz) 额定速度 (rpm) 振动(G)值
VC0625B001L C0625B001L VC0625B001L coin vibration motor preview image BRUSH 1 6.0 2.5 2.5 Vdc 2.0~3.5 Vdc 100 42 90 50 N/A 10000 0.40
VC0720B001F C0720B001F VC0720B001F coin vibration motor preview image BRUSH 2 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 85 53 90 50 N/A 10000 0.15
VC0720B003D C0720B003D VC0720B003D coin vibration motor preview image BRUSH 4 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 80 49 90 50 N/A 10000 0.15
VC0720B015F C0720B015F VC0720B015F coin vibration motor preview image BRUSH 1 7.0 2.0 3.0 Vdc 2.7~3.3 Vdc 85 53 90 50 N/A 8000 0.15
VC0720B088L
blinking new image
C0720B088L VC0720B088L coin vibration motor preview image BRUSH 3 7.0 2.1 3.0 Vdc 2.5~3.5 Vdc 55 48 90 50 N/A 10000 0.15
VC0820B006F C0820B006F VC0820B006F coin vibration motor preview image BRUSH 1 8.0 2.1 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 10000 0.45
VC0820B029L
blinking new image
VC0820B029L coin vibration motor preview image BRUSH 3 8.0 2.1 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 10000 0.45
VC0820K001L C0820K001L VC0820K001L coin vibration motor preview image BRUSH 7 8.0 2.1 3.0 Vdc 2.3~3.5 Vdc 85 62 90 50 N/A 10000 0.45
VC0824K001L C0824K001L VC0824K001L coin vibration motor preview image BRUSH 7 8.05 2.4 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 10000 0.60
VC0824K002L C0824K002L VC0824K002L coin vibration motor preview image BRUSH 7 8.0 2.4 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 10000 0.70
VC0825B002F C0825B002F VC0825B002F coin vibration motor preview image BRUSH 1 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.70
VC0825B029L VC0825B029L coin vibration motor preview image BRUSH 3 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 85 63 90 50 N/A 10000 0.70
VC0827B005F C0827B005F VC0827B005F coin vibration motor preview image BRUSH 1 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.70
VC0827B019F C0827B019F VC0827B019F coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 100 69 90 50 N/A 12000 0.75
VC0827B020F C0827B020F VC0827B020F coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 0.75
VC0827B029L VC0827B029L coin vibration motor preview image BRUSH 2 8.0 2.7 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 13500 0.70
VC0827B307L VC0827B307L coin vibration motor image coming soon BRUSH 3 8.0 2.7 3.0 Vdc 2.3~3.5 Vdc 85 61 90 50 N/A 10000 1.10
VC0830B001L C0830B001L VC0830B001L coin vibration motor preview image BRUSH 1 8.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 63 90 50 N/A 12000 1.00
VC0830B009L C0830B009L VC0830B009L coin vibration motor preview image BRUSH 3 8.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 50 90 50 N/A 10000 1.10
VC0830B029L VC0830B029L coin vibration motor preview image BRUSH 3 8.0 3.0 3.0 Vdc 2.7~3.3 Vdc 90 63 90 50 N/A 13000 1.40
VC0834B011F C0834B011F VC0834B011F coin vibration motor preview image BRUSH 1 8.0 3.4 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.00
VC1018B001L
blinking new image
C1018B001L VC1018B001L coin vibration motor preview image BRUSH 1 10.0 1.8 3.0 Vdc 2.5~3.5 Vdc 85 60 90 50 N/A 10000 0.60
VC1020B001D C1020B001D VC1020B001D coin vibration motor preview image BRUSH 4 10.0 2.05 3.0 Vdc 2.7~3.3 Vdc 90 61 90 50 N/A 9000 1.10
VC1020B111F C1020B111F VC1020B111F coin vibration motor preview image BRUSH 1 10.0 2.1 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.00
VC1020B569L C1020B569L VC1020B569L coin vibration motor preview image BRUSH 3 10.0 2.1 3.0 Vdc 2.5~3.5 Vdc 85 62 90 50 N/A 13500 1.00
VC1026B002F C1026B002F VC1026B002F coin vibration motor preview image BRUSH 1 10.0 2.7 3.0 Vdc 2.7~3.3 Vdc 85 55 90 50 N/A 9000 0.80
VC1027B001D C1027B001D VC1027B001D coin vibration motor preview image BRUSH 4 10.0 2.7 3.0 Vdc 2.7~3.3 Vdc 90 50 90 50 N/A 9000 1.10
VC1027B077L
blinking new image
VC1027B077L coin vibration motor preview image BRUSH 2 10.0 2.7 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 13500 1.10
VC1027B200N C1027B200N VC1027B200N coin vibration motor preview image BRUSH 6 10.0 2.7 3.0 Vdc 2.4~3.6 Vdc 80 55 90 50 N/A 9000 1.10
VC1030A002F
blinking new image
VC1030A002F coin vibration motor preview image BRUSH 1 10.0 3.0 1.3 Vdc 1.0~1.7 Vdc 100 69 90 50 N/A 9000 0.55
VC1030B028F C1030B028F VC1030B028F coin vibration motor preview image BRUSH 1 10.0 3.0 3.0 Vdc 2.7~3.3 Vdc 85 64 90 50 N/A 13500 1.30
VC1030B295L C1030B295L VC1030B295L coin vibration motor preview image BRUSH 1 10.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 61 90 50 N/A 10000 1.00
VC1030B400U VC1030B400U coin vibration motor preview image BRUSH 3 10.0 3.0 3.0 Vdc 2.7~3.3 Vdc 80 67 90 50 N/A 12000 1.00
VC1030B823L C1030B823L VC1030B823L coin vibration motor preview image BRUSH 3 10.0 3.0 3.0 Vdc 2.5~3.5 Vdc 85 62 90 50 N/A 13500 0.90
VC1034B018F C1034B018F VC1034B018F coin vibration motor preview image BRUSH 1 10.0 3.4 3.0 Vdc 2.7~3.3 Vdc 85 61 90 50 N/A 13500 1.50
VC1034B400D C1034B400D VC1034B400D coin vibration motor preview image BRUSH 3 10.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 48 90 50 N/A 12000 1.6
VC1034H025L C1034H025L VC1034H025L coin vibration motor preview image BRUSH 1 10.0 3.4 1.5 Vdc 1.2~1.8 Vdc 40 36 90 50 N/A 9000 0.50
VC1234B016F C1234B016F VC1234B016F coin vibration motor preview image BRUSH 1 12.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 48 90 50 N/A 9000 2.00
VCDM0834B004L CDM0834B004L VCDM0834B004L coin vibration motor preview image DOUBLE-MAGNET 1 8.0 3.4 3.0 Vdc 2.5~3.5 Vdc 75 48 35 50 N/A 10000 1.40
VCDM1027B003L
blinking new image
CDM1027B003L VCDM1027B003L coin vibration motor preview image DOUBLE-MAGNET 1 10.0 2.7 3.0 Vdc 2.5~3.5 Vdc 75 52 35 50 N/A 15000 1.60
VCLP0820B004L CLP0820B004L VCLP0820B004L coin vibration motor preview image BRUSH 1 8.0 2.1 3.0 Vdc 2.7~4.0 Vdc  35 30 90 50 N/A 9000 0.35
VCLP0820K001L
blinking new image
VCLP0820K001L coin vibration motor preview image BRUSH 7 8.0 2.1 3.0 Vdc 2.7~4.0 Vdc  35 31 90 50 N/A 9000 0.35
VCLP1020B002L
blinking new image
CLP1020B002L VCLP1020B002L coin vibration motor preview image BRUSH 1 10.0 2.1 3.0 Vdc 2.5~3.5 Vdc  30 27 90 50 N/A 8000 0.75
VG0640001D
blinking new image
G0640001D VG0640001D coin vibration motor preview image LRA 4 6.0 4.05 1.8 Vac 0.5~1.8 Vac 75 58 15 70 210 - 0.90
VG0640002D VG0640002D coin vibration motor preview image LRA 3 6.0 4.05 1.8 Vac 0.5~1.8 Vac 75 58 15 70 210 - 0.90
VG0825001D G0825001D VG0825001D coin vibration motor preview image LRA 1 8.0 2.55 1.2 Vac 0.1~1.2 Vac 60 48 50 50 240 - 1.05
VG0825002D
blinking new image
VG0825002D coin vibration motor preview image LRA 7 8.0 2.65 1.2 Vac 0.1~1.25 Vac 60 48 50 50 240 - 1.05
VG0825003D VG0825003D coin vibration motor preview image LRA 2 8.0 2.55 1.2 Vac 0.1~1.25 Vac 60 48 50 50 240 - 1.05
VG0832008 G0832008 VG0832008 coin vibration motor preview image LRA 4 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832009L VG0832009L coin vibration motor preview image LRA 2 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832012 G0832012 VG0832012 coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832013D G0832013D VG0832013D coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832014L
blinking new image
G0832014L VG0832014L coin vibration motor preview image LRA 2 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0832022D G0832022D VG0832022D coin vibration motor preview image LRA 1 8.0 3.25 1.8 Vac 0.1~1.85 Vac 80 58 50 80 235 - 1.80
VG0840001D
blinking new image
G0840001D VG0840001D coin vibration motor preview image LRA 3 8.0 4.05 2.0 Vac 0.1~2.0 Vac 90 68 12 55 170 - 1.80
VG1040003D G1040003D VG1040003D coin vibration motor preview image LRA 3 10.0 4.0 2.5 Vac 0.1~2.5 Vac 170 145 10 50 170 - 2.00
VG2080001D VG2080001D coin vibration motor image coming soon LRA 4 20.0 8.0 1.8 Vac 1.0~2.0 Vac 200 170 20 60 130 - 1.60
VG2230001H VG2230001H coin vibration motor image coming soon LRA 22.0 30.0 2.5 Vac 0.1~3.0 Vac 60 48 60 100 70 - > 3.5
VW0525AB001D W0525AB001D VW0525AB001D coin vibration motor preview image BLDC 1 5.0 2.5 3.0 Vdc 2.7~3.3 Vdc 80 77 70 90 N/A 14000 0.25
VW0625AB001G W0625AB001G VW0625AB001G coin vibration motor preview image BLDC 1 6.0 2.5 3.0 Vdc 2.7~3.3 Vdc 90 67 70 90 N/A 15000 0.55
VW0625SS001D W0625SS001D VW0625SS001D coin vibration motor preview image BLDC 5 6.0 2.5 3.0 Vdc 2.7~3.3 Vdc 90 67 70 90 N/A 15000 0.55
VW0625SS002D
blinking new image
VW0625SS002D coin vibration motor preview image BLDC 5 6.0 2.5 3.0 Vdc 2.7~3.7 Vdc 80 67 70 90 N/A 15000 0.55
VW0825AB001G W0825AB001G VW0825AB001G coin vibration motor preview image BLDC 1 8.0 2.5 3.0 Vdc 2.5~3.6 Vdc 90 80 70 90 N/A 15000 1.00
VW0825AB002G
blinking new image
VW0825AB002G coin vibration motor preview image BLDC 3 8.0 2.5 3.0 Vdc 2.7~3.3 Vdc 80 67 70 90 N/A 13500 1.00
VW0934AB001G W0934AB001G VW0934AB001G coin vibration motor preview image BLDC 1 9.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 50 70 90 N/A 11500 1.40
VW0934AB007G W0934AB007G VW0934AB007G coin vibration motor preview image BLDC 3 9.0 3.4 3.0 Vdc 2.7~3.3 Vdc 80 56 70 90 N/A 11500 1.40

“电流典型值” 是从给定生产批次中随机选择的20个马达的平均电流。如有要求,可提供20个马达数据的测试报告副本。

 Config 1  导线       Config 1.1 导线带连接器

Coin Vibration Motors Config - WIRE LEADS

Coin Vibration Motors Config - WIRE LEAD w. CONNECTOR

我们可以为这种马达提供
不同种类的连接器



 Config 2  柔性印刷电路(FPC)    Config 3  与弹簧片/弹簧针接触的焊盘

Coin Vibration Motors Config - Flexible Print Circuit

我们可以为任何扁平振动马达
提供特制的柔性线路板(FPC)

Coin Vibration Motors Config - COMPRESSION SPRING MOUNT

 Config 4  PCS裸板    Config 5  螺旋弹簧 种类1

Coin Vibration Motors Config - BARE PCB

Coin Vibration Motors Config - Type 1 Helical Spring Contacts

 Config 6  压缩弹簧    Config 7  螺旋弹簧 种类2

Coin Vibration Motors Config - COMPRESSION SPRING MOUNT

Coin Vibration Motors Config - Type 2 Helical Spring Contacts



Top
