Vybronics - one of largest suppliers of cylindrical & coin vibration motors
Through Hole Vibrator Motors - picture 1

PCB 插孔式振动马达列表

Through Hole Vibrator Motors - picture 2

这里列出的所有插孔振动马达都配有可安装在PCB的冲压金属支架。根据马达型号,马达将有通孔连接或导线连接两种形式。总的来说,过孔插针有两种长度(1.6mm 或 3.2mm),以适应标准或加厚的多层PCB板。我们可以为我们的导线振动马达添加任何一款标准连接器(请见下面的配置图),也可以在工厂安装您所选择的连接器。我们也可以根据您的规格要求定制支架。

焊接指南: 我们只建议使用“选择性焊接”系统,或使用手工焊接来固定穿孔式振动马达到PCB板。建议的焊接温度为175至200摄氏度(350至400华氏度),以最短的时间使焊料通过孔眼并形成正常的焊角。如果使用任何其他方法,保修将无效。使用回流焊,将会损坏马达,我们不建议使用这种方法。马达可能会被液体损坏。所以装有马达的PCB板不能被清洗、喷洒助焊剂或任何其他化学品。波峰焊接不能用于无芯振动马达,因为波峰焊要求所有电机内部部件都是耐热的,但无芯马达并非如此。在波峰焊接所需的温度下,马达磁铁会退磁、线圈绕组松动/变形以及轴承上的油和胶水蒸发,所有这些都会导致性能下降或马达故障。

滚动表格查看所有马达


产品型号

Download Icon
旧型号 图片

motor logo
结构
类型
马达尺寸 (mm) 电压 (Vdc) 电流 (mA) 额定
速度
(rpm)
振动
(Grms)值
直径 主体
长度
整体
长度
额定 工作 额定
MAX
典型值*
Avg.
VZ4KC1B1051202 Z4KC1B1051202 VZ4KC1B1051202 cylindrical vibration motor preview image 4 4.0 11.3 15.6 3.0 2.2~3.6 70 42 14000 1.20
VZ4SL2A0280131 Z4SL2A0280131 VZ4SL2A0280131 cylindrical vibration motor preview image 2 4.0 10.0 15.9 1.3 1.1~1.6 85 57 10000 0.65
VZ4SL2B0270131 Z4SL2B0270131 VZ4SL2B0270131 cylindrical vibration motor preview image 2 4.0 10.0 14.8 3.0 2.2~3.6 60 47 14000 0.70
VZ4SL2B0280131 Z4SL2B0280131 VZ4SL2B0280131 cylindrical vibration motor preview image 2 4.0 10.0 15.9 3.0 2.2~3.6 70 50 12000 0.55
VZ6CL2A0080491 Z6CL2A0080491 VZ6CL2A0080491 cylindrical vibration motor preview image 3 6.0 15.0 20.5 1.3 0.9~1.6 80 67 7500 1.10
VZ6DC1A0050091 Z6DC1A0050091 VZ6DC1A0050091 cylindrical vibration motor preview image 4 6.0 12.3 17.3 1.3 0.9~1.6 85 67 8500 0.80
VZ6DC1B0050091 Z6DC1B0050091 VZ6DC1B0050091 cylindrical vibration motor preview image 4 6.0 12.3 17.3 3.0 2.2~3.6 70 57 11000 1.10
VZ6DC1B0730091 Z6DC1B0730091 VZ6DC1B0730091 cylindrical vibration motor preview image 4 6.0 12.3 18.8 3.0 2.2~3.6 90 62 7000 1.30
VZ6DCBB0056091 Z6DCBB0056091 VZ6DCBB0056091 cylindrical vibration motor preview image 4 6.0 12.3 17.3 3.0 2.2~3.6 70 57 11000 1.10
VZ6DCBB0735091 Z6DCBB0735091 VZ6DCBB0735091 cylindrical vibration motor preview image 4 6.0 12.3 18.8 3.0 2.2~3.6 90 62 7000 1.30
VZ6DL2A0050441 Z6DL2A0050441 VZ6DL2A0050441 cylindrical vibration motor preview image 2 6.0 12.0 17.1 1.3 0.9~1.6 85 67 8500 0.80
VZ6DL2A0170441 Z6DL2A0170441 VZ6DL2A0170441 cylindrical vibration motor preview image 2 6.0 12.0 17.3 1.3 0.9~1.6 100 72 7000 0.95
VZ6DL2B0050441 Z6DL2B0050441 VZ6DL2B0050441 cylindrical vibration motor preview image 2 6.0 12.0 17.1 3.0 2.0~3.8 70 57 11000 1.10
VZ6GL2A0050461 Z6GL2A0050461 VZ6GL2A0050461 cylindrical vibration motor preview image 3 6.0 13.5 18.6 1.3 0.9~1.6 70 48 8000 1.00
VZ6SC0A0060081 Z6SC0A0060081 VZ6SC0A0060081 cylindrical vibration motor preview image 4 6.0 10.3 14.4 1.3 0.9~1.6 90 68 8500 0.80
VZ6SC0A0150081 Z6SC0A0150081 VZ6SC0A0150081 cylindrical vibration motor preview image 4 6.0 10.3 14.0 1.3 0.9~1.6 80 65 9000 0.65
VZ6SC0B0060081 Z6SC0B0060081 VZ6SC0B0060081 cylindrical vibration motor preview image 4 6.0 10.3 14.4 3.0 2.2~3.6 70 52 10000 1.10
VZ6SC0B0150081 Z6SC0B0150081 VZ6SC0B0150081 cylindrical vibration motor preview image 4 6.0 10.3 14.0 3.0 2.2~3.6 70 45 10000 1.25
VZ6SC0B0170081 Z6SC0B0170081 VZ6SC0B0170081 cylindrical vibration motor preview image 4 6.0 10.3 15.7 3.0 2.2~3.6 75 48 8000 1.25
VZ6SCAA0061141 Z6SCAA0061141 VZ6SCAA0061141 cylindrical vibration motor preview image 4 6.0 10.3 14.4 1.3 0.9~1.6 90 68 8500 0.70
VZ6SCAB0061141 Z6SCAB0061141 VZ6SCAB0061141 cylindrical vibration motor preview image 4 6.0 10.3 14.4 3.0 2.2~3.6 70 52 10000 1.10
VZ6SCAB0171141 VZ6SCAB0171141 cylindrical vibration motor preview image 4 6.0 10.3 15.6 3.0 2.2~3.6 75 48 8000 1.25
VZ6SCAB0761141
blinking new image
VZ6SCAB0761141 cylindrical vibration motor preview image 4 6.0 10.3 16.4 3.0 2.2~3.6 160 120 12000 1.70
VZ6SL2A0060071 Z6SL2A0060071 VZ6SL2A0060071 cylindrical vibration motor preview image 2 6.0 10.0 14.1 1.3 0.9~1.6 90 65 8500 0.80
VZ6SL2B0060071 Z6SL2B0060071 VZ6SL2B0060071 cylindrical vibration motor preview image 2 6.0 10.2 14.3 3.0 2.2~3.6 70 52 10000 1.10
VZ7AL2B1692612 Z7AL2B1692612 VZ7AL2B1692612 cylindrical vibration motor preview image 2 7.0 16.5 23.0 3.0 2.2~3.6 250 180 12000 5.10
产品型号 旧型号 图片 结构类型 直径 (mm) 主体长度 (mm) 整体长度 (m) 额定 (Vdc) 工作 (Vdc) 额定 MAX (mA) 典型值* (mA) 额定速度 (rpm) 振动(Grms)值
VZ4KC1B1051202 Z4KC1B1051202 VZ4KC1B1051202 cylindrical vibration motor preview image 4 4.0 11.3 15.6 3.0 2.2~3.6 70 42 14000 1.20
VZ4SL2A0280131 Z4SL2A0280131 VZ4SL2A0280131 cylindrical vibration motor preview image 2 4.0 10.0 15.9 1.3 1.1~1.6 85 57 10000 0.65
VZ4SL2B0270131 Z4SL2B0270131 VZ4SL2B0270131 cylindrical vibration motor preview image 2 4.0 10.0 14.8 3.0 2.2~3.6 60 47 14000 0.70
VZ4SL2B0280131 Z4SL2B0280131 VZ4SL2B0280131 cylindrical vibration motor preview image 2 4.0 10.0 15.9 3.0 2.2~3.6 70 50 12000 0.55
VZ6CL2A0080491 Z6CL2A0080491 VZ6CL2A0080491 cylindrical vibration motor preview image 3 6.0 15.0 20.5 1.3 0.9~1.6 80 67 7500 1.10
VZ6DC1A0050091 Z6DC1A0050091 VZ6DC1A0050091 cylindrical vibration motor preview image 4 6.0 12.3 17.3 1.3 0.9~1.6 85 67 8500 0.80
VZ6DC1B0050091 Z6DC1B0050091 VZ6DC1B0050091 cylindrical vibration motor preview image 4 6.0 12.3 17.3 3.0 2.2~3.6 70 57 11000 1.10
VZ6DC1B0730091 Z6DC1B0730091 VZ6DC1B0730091 cylindrical vibration motor preview image 4 6.0 12.3 18.8 3.0 2.2~3.6 90 62 7000 1.30
VZ6DCBB0056091 Z6DCBB0056091 VZ6DCBB0056091 cylindrical vibration motor preview image 4 6.0 12.3 17.3 3.0 2.2~3.6 70 57 11000 1.10
VZ6DCBB0735091 Z6DCBB0735091 VZ6DCBB0735091 cylindrical vibration motor preview image 4 6.0 12.3 18.8 3.0 2.2~3.6 90 62 7000 1.30
VZ6DL2A0050441 Z6DL2A0050441 VZ6DL2A0050441 cylindrical vibration motor preview image 2 6.0 12.0 17.1 1.3 0.9~1.6 85 67 8500 0.80
VZ6DL2A0170441 Z6DL2A0170441 VZ6DL2A0170441 cylindrical vibration motor preview image 2 6.0 12.0 17.3 1.3 0.9~1.6 100 72 7000 0.95
VZ6DL2B0050441 Z6DL2B0050441 VZ6DL2B0050441 cylindrical vibration motor preview image 2 6.0 12.0 17.1 3.0 2.0~3.8 70 57 11000 1.10
VZ6GL2A0050461 Z6GL2A0050461 VZ6GL2A0050461 cylindrical vibration motor preview image 3 6.0 13.5 18.6 1.3 0.9~1.6 70 48 8000 1.00
VZ6SC0A0060081 Z6SC0A0060081 VZ6SC0A0060081 cylindrical vibration motor preview image 4 6.0 10.3 14.4 1.3 0.9~1.6 90 68 8500 0.80
VZ6SC0A0150081 Z6SC0A0150081 VZ6SC0A0150081 cylindrical vibration motor preview image 4 6.0 10.3 14.0 1.3 0.9~1.6 80 65 9000 0.65
VZ6SC0B0060081 Z6SC0B0060081 VZ6SC0B0060081 cylindrical vibration motor preview image 4 6.0 10.3 14.4 3.0 2.2~3.6 70 52 10000 1.10
VZ6SC0B0150081 Z6SC0B0150081 VZ6SC0B0150081 cylindrical vibration motor preview image 4 6.0 10.3 14.0 3.0 2.2~3.6 70 45 10000 1.25
VZ6SC0B0170081 Z6SC0B0170081 VZ6SC0B0170081 cylindrical vibration motor preview image 4 6.0 10.3 15.7 3.0 2.2~3.6 75 48 8000 1.25
VZ6SCAA0061141 Z6SCAA0061141 VZ6SCAA0061141 cylindrical vibration motor preview image 4 6.0 10.3 14.4 1.3 0.9~1.6 90 68 8500 0.70
VZ6SCAB0061141 Z6SCAB0061141 VZ6SCAB0061141 cylindrical vibration motor preview image 4 6.0 10.3 14.4 3.0 2.2~3.6 70 52 10000 1.10
VZ6SCAB0171141 VZ6SCAB0171141 cylindrical vibration motor preview image 4 6.0 10.3 15.6 3.0 2.2~3.6 75 48 8000 1.25
VZ6SCAB0761141
blinking new image
VZ6SCAB0761141 cylindrical vibration motor preview image 4 6.0 10.3 16.4 3.0 2.2~3.6 160 120 12000 1.70
VZ6SL2A0060071 Z6SL2A0060071 VZ6SL2A0060071 cylindrical vibration motor preview image 2 6.0 10.0 14.1 1.3 0.9~1.6 90 65 8500 0.80
VZ6SL2B0060071 Z6SL2B0060071 VZ6SL2B0060071 cylindrical vibration motor preview image 2 6.0 10.2 14.3 3.0 2.2~3.6 70 52 10000 1.10
VZ7AL2B1692612 Z7AL2B1692612 VZ7AL2B1692612 cylindrical vibration motor preview image 2 7.0 16.5 23.0 3.0 2.2~3.6 250 180 12000 5.10

“电流典型值” 是从给定生产批次中随机选择的20个马达的平均电流。如有要求,可提供20个马达数据的测试报告副本。



振动马达安装配置图

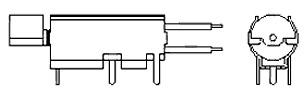

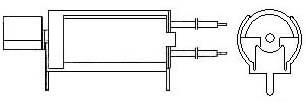

Config 2 导线,带PCB支架 Config 3 导线,带PCB支架

Through Hole Vibrator Motors - WIRE LEAD W. PCB BRACKET

Through Hole Vibrator Motors - WIRE LEAD W. PCB BRACKET

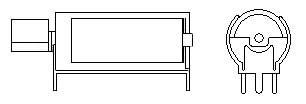

 Config 4 PCB插孔安装 Config 7 PCB MID-MOUNT
Through Hole Vibrator Motors - THOUGH-HOLE PCB MOUNTED

Through Hole Vibrator Motors - PCB MID-MOUNT

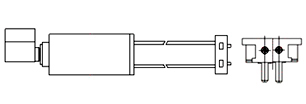

导线带连接器

Through Hole Vibrator Motors - WIRE LEAD w. CONNECTOR

我们可以为这种马达提供
不同种类的连接器
