Vybronics - one of largest suppliers of cylindrical & coin vibration motors
Strong Vibration Motors - picture 1

强振马达列表

Strong Vibration Motors - picture 2

这些较大型振动马达可产生高振幅的振动量,一般不适用于手机等小型设备。这些ERM马达通常需要比小型马达更高的驱动电压,并且在偏心轮后面有螺纹孔,以便于安装。我们的振动马达都可以提供连接端子,以便您连接导线,或者我们也可以提供带连接器的导线连接。所有这些高性能马达都使用了不锈钢轴,油浸轴承和高质金属电刷。马达的典型应用包括按摩床、按摩椅、成人玩具、医疗设备、游戏控制器以及振动警报等。

滚动表格查看所有马达


产品型号

Download Icon
旧型号 图片

motor logo
结构
类型
马达尺寸 (mm) 电压 (Vdc) 电流 (mA) 额定
速度
(rpm)
振动
(Grms)值
直径/高度 主体
长度
整体
长度
额定 工作 额定
MAX
典型值
*Avg.
VJP08-74D160A JP08-74D160A VJP08-74D160A cylindrical vibration motor preview image 1.1/1.2 8.0 / 6.0 14.5 21.3 4.5 1.5~6.0 230 210 14000 4.80
VJP10-35C270M2 VJP10-35C270M2 cylindrical vibration motor preview image 1.1/1.2 10.0 / 8.0 12.5 16.9 4.8 3.0~6.0 175 126 16000 2.60
VJP12-25F190 JP12-25F190 VJP12-25F190 cylindrical vibration motor preview image 1.1/1.2 12.0 / 10.0 12.0 19.0 3.0 2.0~6.0 350 280 9000 6.00
VJP12-95J100U VJP12-95J100U cylindrical vibration motor preview image 1.1/1.2 12.0 / 10.0 20.0 28.0 3.0 1.5~4.2 240 200 9600 4.80
VJP16-70E310 JP16-70E310 VJP16-70E310 cylindrical vibration motor preview image 1.1/1.2 15.5 / 12.0 18.6 27.1 7.2 2.5~7.5 180 153 8250 6.40
VJQ24-35E400C JQ24-35E400C VJQ24-35E400C cylindrical vibration motor preview image 1.1/1.2 24.4 13.0 25.0 5.0 4.0~8.0 120 69 5100 1.50
VJQ24-35F580C JQ24-35F580C VJQ24-35F580C cylindrical vibration motor preview image 1.1/1.2 24.4 13.0 25.0 5.0 4.0~8.0 150 93 2550 3.30
VJQ24-35K270B JQ24-35K270B VJQ24-35K270B cylindrical vibration motor preview image 1.1/1.2 24.4 13.0 25.0 5.0 4.0~8.0 650 550 3400 8.40
产品型号 旧型号 图片 结构类型 直径/高度 (mm) 主体长度 (mm) 整体长度 (mm) 额定 (V) 工作 (V) 额定 MAX (mA) 典型值* (mA) 速度 (rpm) 振动(Grms)值
VJP08-74D160A JP08-74D160A VJP08-74D160A cylindrical vibration motor preview image 1.1/1.2 8.0 / 6.0 14.5 21.3 4.5 1.5~6.0 230 210 14000 4.80
VJP10-35C270M2 VJP10-35C270M2 cylindrical vibration motor preview image 1.1/1.2 10.0 / 8.0 12.5 16.9 4.8 3.0~6.0 175 126 16000 2.60
VJP12-25F190 JP12-25F190 VJP12-25F190 cylindrical vibration motor preview image 1.1/1.2 12.0 / 10.0 12.0 19.0 3.0 2.0~6.0 350 280 9000 6.00
VJP12-95J100U VJP12-95J100U cylindrical vibration motor preview image 1.1/1.2 12.0 / 10.0 20.0 28.0 3.0 1.5~4.2 240 200 9600 4.80
VJP16-70E310 JP16-70E310 VJP16-70E310 cylindrical vibration motor preview image 1.1/1.2 15.5 / 12.0 18.6 27.1 7.2 2.5~7.5 180 153 8250 6.40
VJQ24-35E400C JQ24-35E400C VJQ24-35E400C cylindrical vibration motor preview image 1.1/1.2 24.4 13.0 25.0 5.0 4.0~8.0 120 69 5100 1.50
VJQ24-35F580C JQ24-35F580C VJQ24-35F580C cylindrical vibration motor preview image 1.1/1.2 24.4 13.0 25.0 5.0 4.0~8.0 150 93 2550 3.30
VJQ24-35K270B JQ24-35K270B VJQ24-35K270B cylindrical vibration motor preview image 1.1/1.2 24.4 13.0 25.0 5.0 4.0~8.0 650 550 3400 8.40

“电流典型值” 是从给定生产批次中随机选择的20个马达的平均电流。如有要求,可提供20个马达数据的测试报告副本。

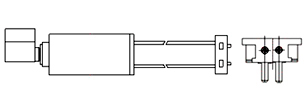

 Config 1.1  导线带连接器

 Config 1.2   焊接端子

Strong Vibration Motors - WIRE LEAD w. CONNECTOR

我们可以为这种马达提供
不同种类的连接器

Strong Vibration Motors - SOLDER TERMINALS
